    • Electrical & Lighting Wiring & Cabling Control & Security Cables 100m OSC6 6 Core 24AWG Overall Foil Screen 600V Grey LSZH (9536) - Cable

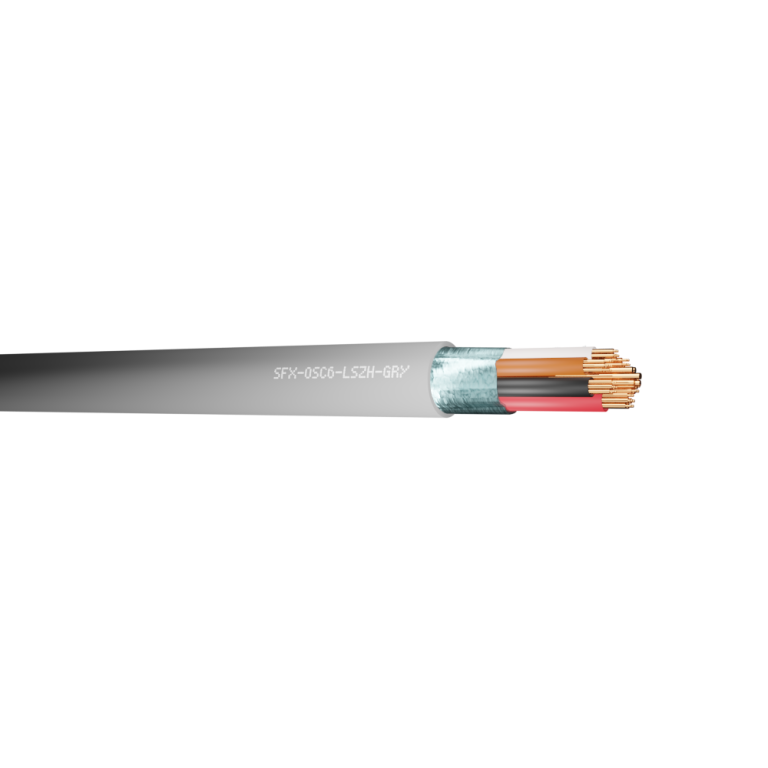

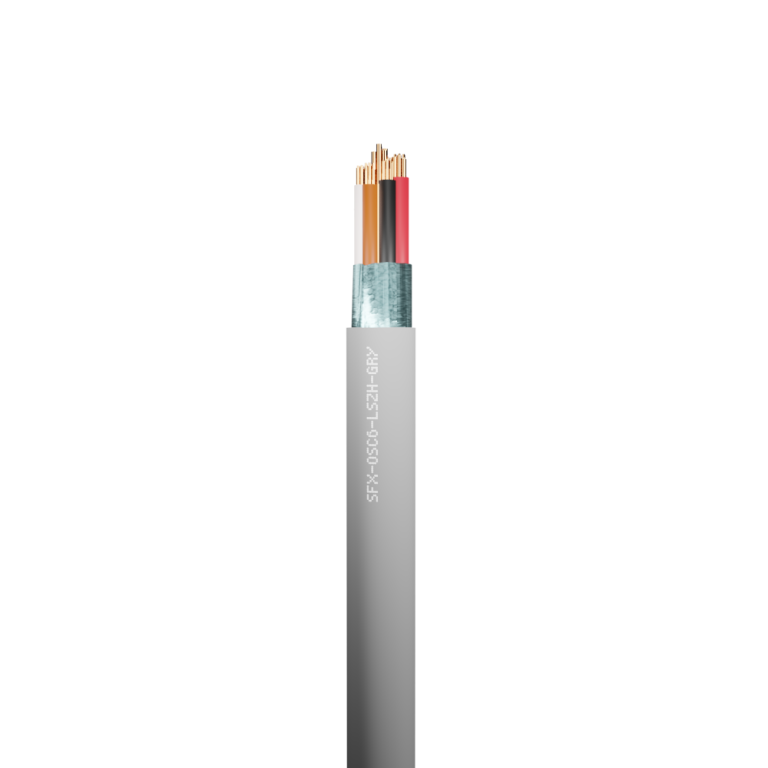

    100m OSC6 6 Core 24AWG Overall Foil Screen 600V Grey LSZH (9536) - Cable

    SFX/OSC6-LSZH-GRY-100

    POA

    POA

    This product is not available to purchase online - please enquire for further details.

    • 100m OSC6 6 Core 24AWG Overall Foil Screen 600V Grey LSZH (9536) CPR:Eca

      • Additional screening makes this cable suitable to be installed in areas where protection from electrical interferance is required
      • Used for RS232 protocol
      • Low smoke zero halogen plastic is good for use inside public buildings and spaces as will not emit toxic gases if the cable catches fire
      • Improved performance and protection against fire
      Brand
      Securi-Flex
      Guarantee
      25 Years
      Category
      Belden Equivalents
      Product Code
      SFX/OSC6-LSZH-GRY-100
      Size
      Reel of 100m
      Dimensions

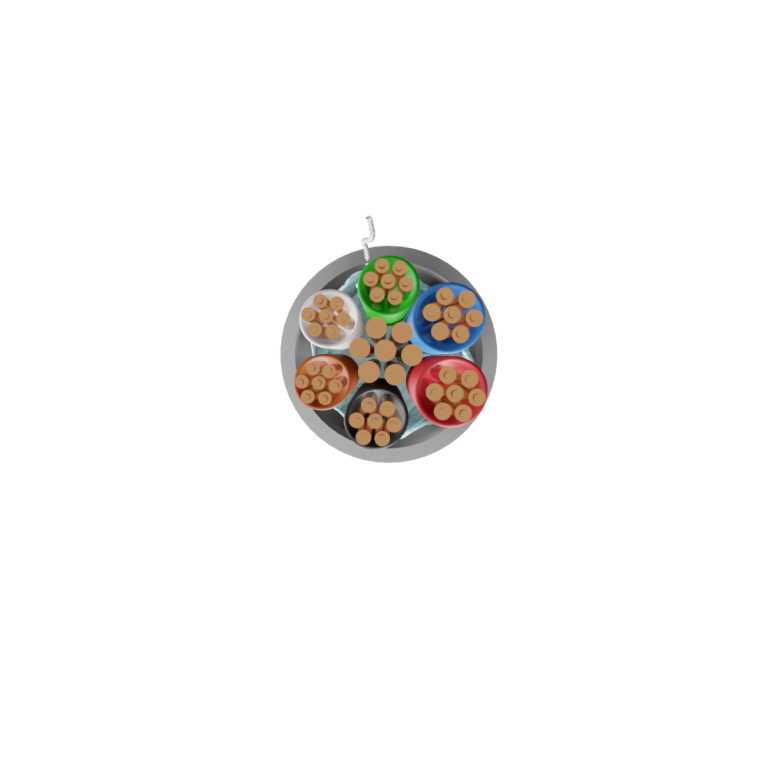

      Overall Diameter (mm): 4.90 ±0.20, Conductor Diameter (mm): 0.19 ±0.008 x 7(0.22mm²), Insulation Thickness (mm): 0.3, Insulation Thickness 2 (mm): 1.20 ±0.10, Jacket Thickness (mm): 0.70, Stranded Diameter (mm): 0.22, Drain Wire Conductor Diameter (mm): 0.19 ±0.008 x 7
      Main Colour
      Grey
      Weight
      4 g
      GTIN
      5056631505471
