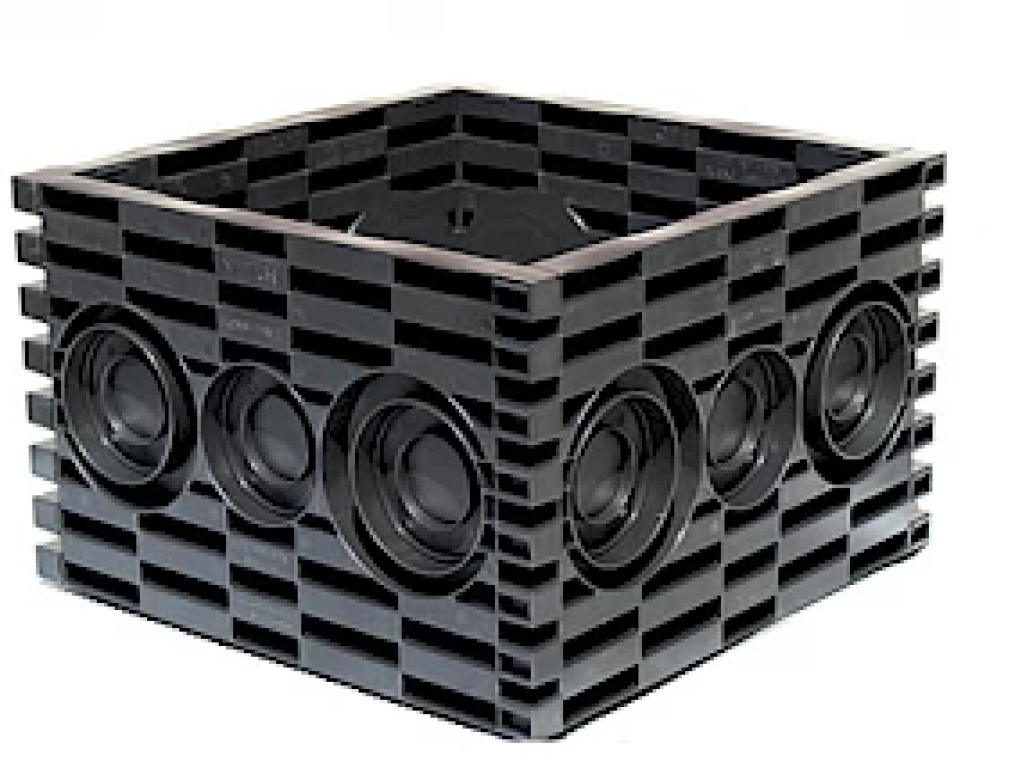

Naylor Metro Access Box - 300 x 300 x 330mm

The Naylor Modular Access Chambers systems are an easy to assemble, eco-friendly system, which can either be supplied flat packed or pre-assembled depending on the customer’s preference.

Features and Benefits:
Panels are injection moulded in 100% recycled Polypropylene
Panels are easy to assemble, and designed to interlock at the corners with an integrated mortice and tenon taper lock system
The external wall is patterned such that a concrete surround will flow into voids, adding to the structural strength of the system.
Panels are available in 300mm, 450mm and 600mm sizes, allowing for a range of chamber sizes to be assembled (larger sizes available on request)
Panels are 330mm deep, with interlocking features which allow for 3 boxes to be easily stacked per metre depth
A range of composite and galvanised covers and frames are available for all sizes
Wide internal flange within the chamber enables covers and frames to fit straight onto the box, therefore direct loading is transferred evenly
Panels have trepanned holes which take electricity and utility duct sizes from 63mm to 160mm
Adaptors are available for 178mm duct
Chambers are versatile and suitable for most ducting applications
System is approved for use by many Local Authorities and Utility Sectors
